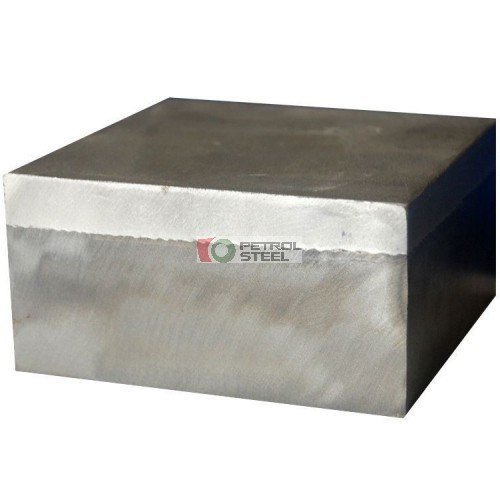

Explosion Welding Metal Plate

Explosion Cladding Process

Explosive Welding Tube Sheet

产品说明

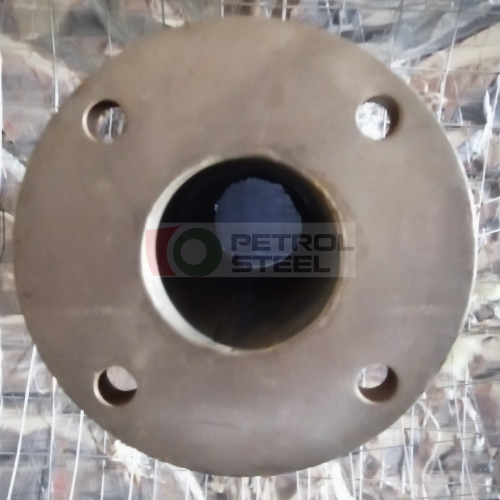

We are a professional supplier of Explosion Welding Tube, Explosion Welding Pipe and Explosion Welding Metal Plate from China.

Explosion welding (EXW) is a solid-state (solid-phase) process where welding is accomplished by accelerating one of the components at extremely high velocity through the use of chemical explosives.

The standard of our explosion welded clad pipe:
ASTM, ASME, ABS, DIN, GL, BS, LR, JIS, EN, DNV, BV, AS, ISO, GB/T8547, NB/T47002.1-4, and other standards

The applications of our explosion welded clad pipes

1. The Chemical Fields
1) The aspects involved: PTA engineering (oxidation reactor, crystallizer, solvent dehydration tower, large heat exchanger, etc.), Chlor-alkali engineering (tower and ion membrane electrolyzer, etc.), vacuum salt production (evaporation tank, evaporation chamber, heat exchange), etc., acetic acid engineering (acetate column, heat exchanger, acid storage tank, etc.).
2) The applied materials: Ti+CS Ti+SS SS+CS Cu+CS Cu+SS Ni+CS Ni+SS Zr+CS Ag+CS Al+CS, etc.
3) The usual Specifications:
The multilayer thickness: 2-8mm,
The base material thickness: 8-100mm Size: 600-4500 * 4500-8000mm

2. The Power Environmental Protection

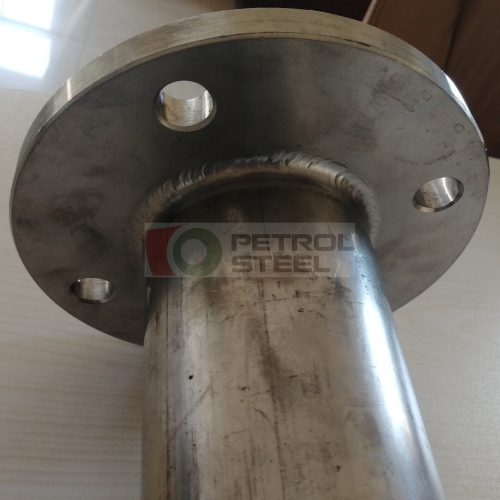

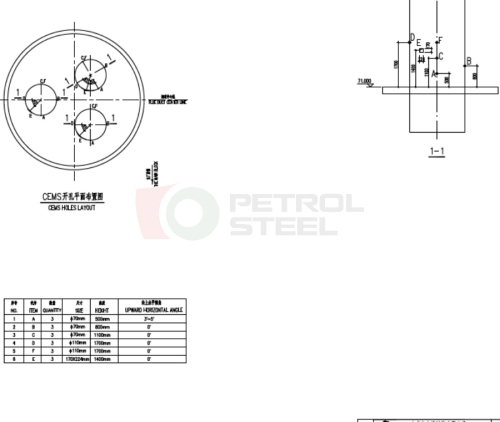

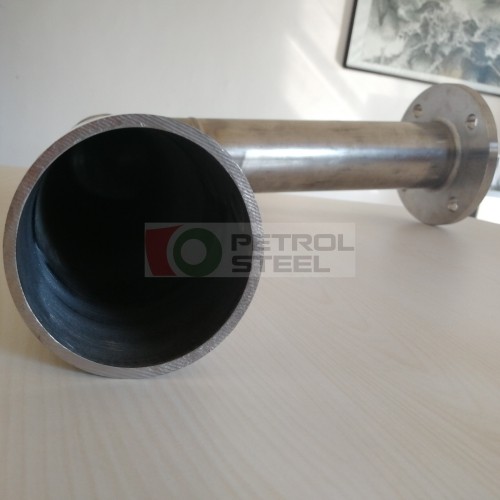

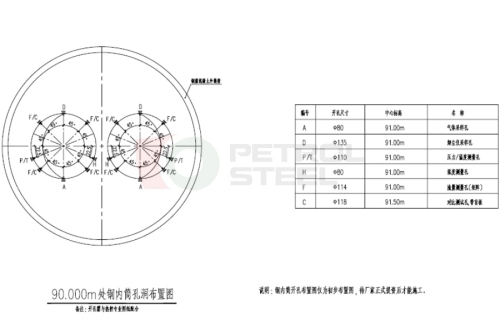

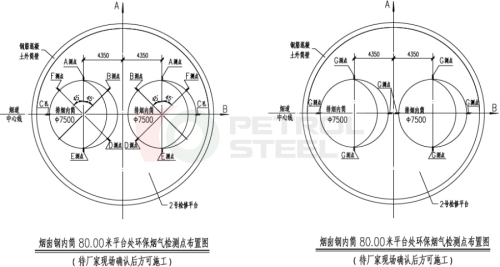

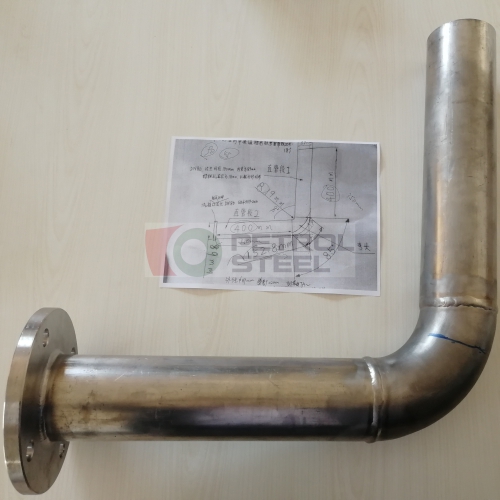

1) The aspects involved: the coal conveyor belts, power plant condenser tube sheets, chimney anti-corrosion lining materials, tubes for CMES (Continuous Emission Monitoring System), the bi-metal lined pipes are usually to be used as sampling port pipes in Titanium clad carbon steel power plant chimney flue liner working with FGD.
2) The applied materials: Ti SB265, Gr.2+ASTM A53 Gr.B, Ti SB265,Gr.2+ ASTM A106 Gr.B, Ti SB265,Gr.2+St44, Ti SB265,Gr.2+St52
3) The usual Specifications of our Titanium cladding carbon steel pipes :
The size: 1000-2500 * 6000-8000mm,
The multilayer thickness: 1.0-1.6mm,
The base material thickness: 8-20mm

3. The Power Industry
1) The aspects involved: Condenser tube sheets, etc.
2) The applied materials: Multi-layer grades: TA1, TA2, GR1, GR2, and base material grades: ASME SA516 GR70, WPL6, ASTM A333 GR.6, Q345R, etc
3) The usual Specifications:
The size: 2-5mm + 20-50mm,
The molybdenum composite alloy plate thickness range: 3.5-6 + 30-35,
The dimensions range: 3000-4880 * 5000-7000

4. The Aerospace Industry
1) The aspects involved: transition composite joints, aircraft skins, etc.
2) The applied materials: Ti+AL
3) The usual Specifications: 1+3mm

5. The Civil field
1) The aspects involved: cookware, golf clubs, buildings, etc.
2) The applied materials: Ti+AL+SS AL+SS Cu+AL
3) The usual Specifications: 0.5+1+1.5mm 1+2 mm

6. The Marine Engineering
1) The aspects involved: various types of pipe fittings, platform body materials, etc.
2) The applied materials: Ti Cu Ti+Cu Ti+CS
3) The usual Specifications: 1-10 mm, 2+20 mm

7. The Shipbuilding Industry
1) The aspects involved: connecting flanges, special parts, etc.
2) The applied materials: AL+CCSB
3) The usual Specifications: 5+20 mm

8. The Military Field

1) The aspects involved: special materials, individual equipment, etc.
2) The applied materials: Ti Ti+AL
3) The usual Specifications: 1+2.5 mm, 2-30 mm

9. Metallurgical industry

1) The aspects involved: reactors, housing tanks, etc.
2) The applied materials: Multi-layer grade: TA1, TA2, TA9, GR1, GR2, GR17, GR11, and the base material grades: ASME SA516 GR70, WPL6, SA266 GR2, ASTM A333 GR.6, Q345R, etc.
3) The usual Specifications:
The thickness specification: 3.5-6 * 30-120mm
The dimensions: 3000-4500 * 5000-7000mm

PETROL STEEL CO., LTD can produce the followings items:
Explosive Welding Wear-resisting, Corrosion resistant composite metal material, Titanium copper aluminum composite tube, explosion welded clad steel plate, Titanium copper composite pipe, Titanium steel composite pipe, Stainless steel copper composite pipe, Copper and copper alloy composite plate, Nickel and nickel alloy composite plate, Zirconium and zirconium alloy composite plate, Stainless steel composite plate, Aluminum steel composite plate, Titanium steel composite tube sheet, Ti+CS, Ti+SS, SS+CS, Cu+CS, Cu+SS, Ni+CS, Ni+SS, Zr+CS, Ag+CS, Al+CS, AL+CCSB, Ti+AL, ASME SA516 GR70, SA266 GR2, Ti+AL+SS, AL+SS Cu+AL, tungsten alloy composite plate, tungsten copper alloy sheet, WAg tungsten silver alloy sheet, molybdenum composite alloy plate
